Air ends-rotary screw compressor units-

GU model range from 7,5 kW / 10 HP up to 55 kW / 75 HP

Our GU air ends are characterised by a very solid cast iron , quality rotors and bearings and modern design and the excellent price / performance ratio.

More technical details, drawings etc. you get in column Download / Data on the left hand side.

Power range from 7,5 (10 HP) up to 55 kW (75 HP)
Other power ranges in developing.

High performance rotors steel C45
High performance bearings
High performance shaft seal systems

Product	Power range kW / HP	Max. flow m³ / cfm / min
GU 8	up to 7,5 / 10	1,0 / 35
GU 11	up to 11 / 15	1,8 / 63
GU 15	up to 15 / 20	2,1 / 74
GU 30	up to 30 / 40	4,3 / 150
GU 30 G
GU 37	up to 37 / 50	5,8 / 203
GU 55	up to 55 / 75	8,6 / 300
GU 55 G

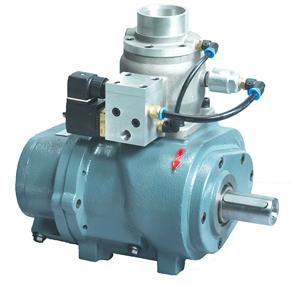

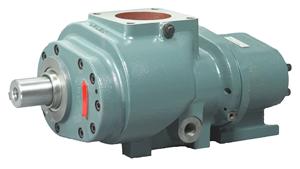

Air end GU55
up to 55 kW / 75 HP shaft power

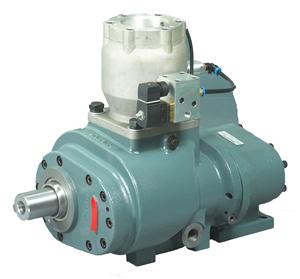

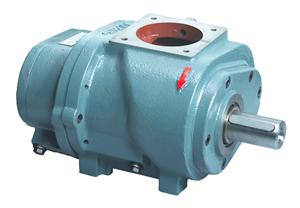

Air end GU30
up to 30 kW / 40 HP shaft power
